Description
Three Disk Separator is for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals.It can form different intensity magnetic disk by adjusting the excitation current levels, and also be adjusted each level disk and sensing distance between dressing grain is to get different magnetic induction intensity, reaching a onetime separation of various minerals. This device is widely used in tungsten tin, tantalum,iron ore and other minerals with magnetic and non-magnetic dry sorting.
The 3-disk magnetic separator is a dry intensified magnetic separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
This device is widely used in tungsten, tin, tantalum, iron ore and other minerals with magnetic and non-magnetic dry sorting.

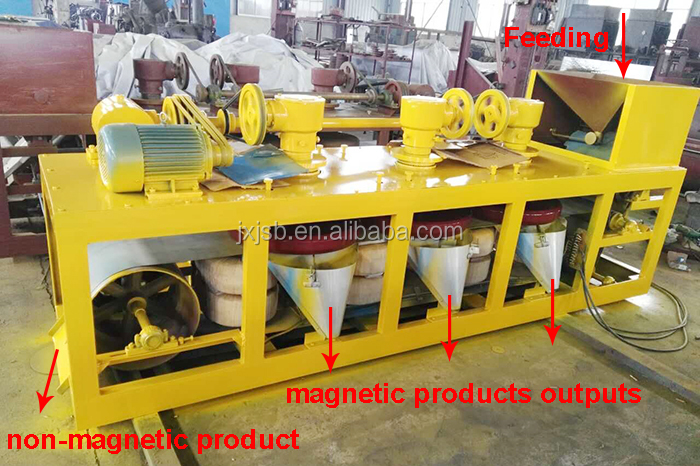

4 varieties of products can be obtained by separation of the device.
The main machine is composed of feeding device, weak magnetic drum, drive part, material conveying device, magnetic disk, electromagnetic system, framework and others.

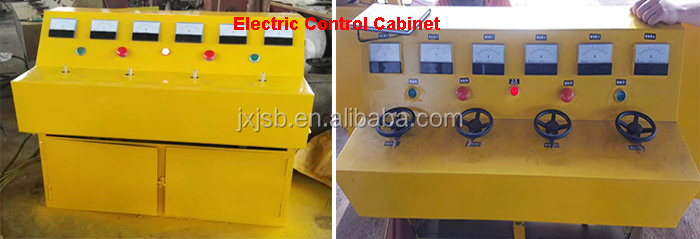

The electrical console consists of components of controller, voltage regulator, rectification, instrument and so on.
Three-disk electromagnetic separator is for a variety of strong magnetic minerals mixed ore separation, according to the difference of magnetic minerals, can achieve efficient separation of minerals. It can form different intensity magnetic disk by adjusting the excitation current levels, and also be adjusted each level disk and sensing distance between dressing grain is to get different magnetic induction intensity, reaching a onetime separation of various minerals.

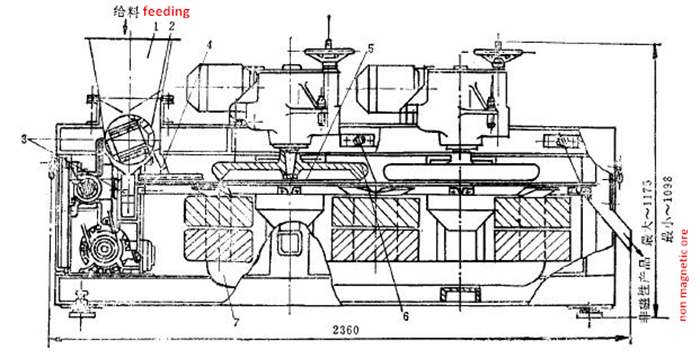

1. Feeding bin; 2. Feeding cylinder; 3. Strong magnetic product hopper; 4. Screen chute;
5. Vibrating chute; 6. Excitation control cabinet; 7. Magnetic machine disk
Technical Specification
